With Disc Rotor Motor
- single or double inlet with internal FISCHBACH-Disc Rotor Motor
- 4 poles, 230V/400V/50Hz/60Hz
- 0…100% adjustable by voltage
- insulation class F (155°) according to VDE 0530
- motor protection class IP65 (electrical part) according to DIN 40050 with CE sign
With EC-Disc Rotor Motor
- single or double inlet with internal FISCHBACH EC Disc Rotor Motor
- 4 poles, 230V/400V/50Hz/60Hz
- with Fischbach EC-Controller IP54 / Frequency Inverter IP21 / IP66
- adjustable by 0-10 Volts
- insulation class F (155°) according to VDE 0530
- motor protection class IP65 (electrical part) according to DIN 40050 with CE sign
- ErP conform
Advantages of our Compact Centrifugal Fans
Motor protection class ip 65 (electrical part) according to din 40050 with ce sign. Interior-fan-assembly with solid motor axle mounted on rubber-metal-connections (vibration damper) at the housing.
The fan housing is made of galvanized steel sheets. On request available in stainless steel or lacquered steel versions. The clip angle plates are all-round displaceable on the housing, because of the high number of round holes as also spot welding nuts. long holes ease the mounting at the object slide.
Forward bended impeller blades made of galvanized steel sheets, depending on the type punched or riveted. The internal fan assembly has been dynamic balanced according to ISO 1940 part 1 up to grade Q1, electronical dynamic balancing is also available on request.
The maximum permissible ambient temperature is up to 80°C, depending on the fan. The FISCHBACH disc rotor motor is protected against overheating by a thermal contact.
Compact Centrifugal Fan D/DS/DS-EC Series
Fischbach compact fan / radial fan D/DS series with forward curved blades and with Disc-Rotor Motor / EC Disc-Rotor-Motor, which is placed in the air flow, is a perfect solution for every scopes of application in the field of heating, ventilation and air conditioning technology as well as for the installation in heating units and ventilation boxes.
Even on industrial application, such as machinery and plant engineering, Fischbach compact fans are ideal with their high protection class IP65 and temperature stability. All compact fans are also available as stainless steel version (V2A/V4A). The maximum permissable ambient temperature is up to 80°C, depending on the fan. The FISCHBACH disc rotor motor is protected against overheating by a thermal contact.
Download Material
Accessories
Diagram overview
Diagram overview EC
Dimensions
Sound data
Sound data EC
Product tables of the D/DS/DS-EC Series
| Product Data Sheet (PDF) | Data | Voltage | Motor |
|---|---|---|---|
| D240/EM 10 | up to 1688 m³/h | 230V | EC-Motor |
| D270/EM 10 | up to 2240 m³/h | 230V | EC-Motor |
| D340/EM 10 | up to 2340 m³/h | 230V | EC-Motor |
| D440/EM 15 | up to 2380 m³/h | 230V | EC-Motor |
| D470/EM 15 | up to 2745 m³/h | 230V | EC-Motor |
| D540/EM 15 | up to 2992 m³/h | 230V | EC-Motor |
| D540/EM 25 | up to 3010 m³/h | 230V | EC-Motor |
| D570/EM 25 | up to 3520 m³/h | 230V | EC-Motor |
| DS5-640/EM 35 | up to 4257 m³/h | 230V | EC-Motor |
| DS6-740/EM 35 | up to 4833 m³/h | 230V | EC-Motor |
| D640/DM 500 | up to 4492 m³/h | 400V | EC-Motor |
| DS6-770/EM 850 | up to 5167 m³/h | 230V | EC-Motor |
| D670/EM 35 | up to 5488 m³/h | 230V | EC-Motor |
| DS6-740/DM 500 | up to 4050 m³/h | 400V | EC-Motor |
| D770/DM 850 | up to 6500 m³/h | 400V | EC-Motor |
| D770/EM 850 | up to 5870 m³/h | 230V | EC-Motor |
| DS6-770/DM 850 | up to 6000 m³/h | 400V | EC-Motor |
| D670/DM 500 | up to 5488 m³/h | 400V | EC-Motor |
| D770/DM 1 | up to 7150 m³/h | 400V | EC-Motor |
| DS6-770/DM 1 | up to 6700 m³/h | 400V | EC-Motor |
| D970/DM 2 | up to 8463 m³/h | 400V | EC-Motor |
| DS8-970/DM 2 | up to 8660 m³/h | 400V | EC-Motor |
| DS8-980/DM 2.5 | up to 11295 m³/h | 400V | EC-Motor |
| DS9-070/DM 2.5 | up to 12380 m³/h | 400V | EC-Motor |
| DS9-070/DM 5 | up to 14222 m³/h | 400V | EC-Motor |
| DS9-001/DM 5 | up to 17300 m³/h | 400V | EC-Motor |
| Product Data Sheet (PDF) | Data | Voltage | Motor |
|---|---|---|---|
| D240/E 1 | up to 1334 m³/h | 230V | Standard |
| D270/E 1 | up to 1519 m³/h | 230V | Standard |
| D340/E 1 | up to 1526 m³/h | 230V | Standard |
| D440/E 15 | up to 2200 m³/h | 230V | Standard |
| D540/E 15 | up to 2346 m³/h | 230V | Standard |
| D470/E 15 | up to 2409 m³/h | 230V | Standard |
| D540/E 25 | up to 2903 m³/h | 230V | Standard |
| D570/E 25 | up to 3400 m³/h | 230V | Standard |
| D670/E 35 | up to 4070 m³/h | 230V | Standard |
| D730/E 35 | up to 3650 m³/h | 230V | Standard |
| DS5-640/E 35 | up to 3350 m³/h | 230V | Standard |
| DS6-740/E 35 | up to 3685 m³/h | 230V | Standard |
| DS6-740/E 65 | up to 3775 m³/h | 230V | Standard |
| D730/D 500 | up to 3677 m³/h | 400V | Standard |
| DS6-740/D 500 | up to 3686 m³/h | 400V | Standard |
| D640/E35 | up to 3390 m³/h | 230V | Standard |
| D670/D 500 | up to 4300 m³/h | 400V | Standard |
| DS6-770/E 65 | up to 4602 m³/h | 230V | Standard |
| D770/E 65 | up to 4730 m³/h | 230V | Standard |
| DS6-770/D 850 | up to 5420 m³/h | 400V | Standard |
| DS6-770/D 1 | up to 5820 m³/h | 400V | Standard |
| D770/E 80 | up to 6004 m³/h | 230V | Standard |
| D770/D 850 | up to 6466 m³/h | 400V | Standard |
| D770/D 1 | up to 6477 m³/h | 400V | Standard |
| DS8-970/D 2 | up to 7850 m³/h | 400V | Standard |
| D970/D 2 | up to 9144 m³/h | 400V | Standard |
| DS9-070/D 2.5 | up to 9850 m³/h | 400V | Standard |
| DS8-980/D 2.5 | up to 10874 m³/h | 400V | Standard |
| DS9-070/D 5 | up to 14025 m³/h | 400V | Standard |
| DS9-001/D 5 | up to 14600 m³/h | 400V | Standard |
| DS0-101/TD 10 | up to 24800 m³/h | 400V | Standard |
Compact Centrifugal Fan DR/DR-EC Series
The compact fan DR/DR-EC comes with backward curved blades and with Disc-Rotor Motor / EC Disc-Rotor-Motor, which is placed in the air flow. It is a perfect solution for every scopes of application in the field of heating, ventilation and air conditioning technology as well as for the installation in heating units and ventilation boxes.
Even on industrial application, such as machinery and plant engineering, Fischbach compact fans are ideal with their high protection class IP65 and temperature stability. All compact fans are also available as stainless steel version (V2A/V4A). The maximum permissable ambient temperature is up to 80°C, depending on the fan. The FISCHBACH disc rotor motor is protected against overheating by a thermal contact.
Download Material
Product tables of the DR/DR-EC Series
| Product Data Sheet (PDF) | Data | Voltage | Motor |
|---|---|---|---|
| DR7-315/E25 | 2800 m³/h | 230V | Standard |
| DR8-355/E25 | 4500 m³/h | 230V | Standard |
| DR9-400/E35 | 6550 m³/h | 230V | Standard |
| DR0-450/D1 | 9100 m³/h | 400V | Standard |
| DR7-315/EM25 | 3500 m³/h | 230V | EC-Motor |
| DR8-355/EM25 | 5300 m³/h | 230V | EC-Motor |
| DR9-400/EM35 | 7800 m³/h | 230V | EC-Motor |
| DR0-450/DM1 | 11500 m³/h | 400V | EC-Motor |
Compact Fans with Single Inlet Fans – CE/CE-EC Series
With the CE/CE-EC series, Fischbach offers a wide range of compact fans / radial fans with single inlet and internal with Disc-Rotor Motor for assignment on several ventilation applications in field of AHU or machinery and plant engineering. Especially the double acoustic decoupling provides extremely quiet operation such as in the area of extraction systems at workstations.
Product tables of the CE/CE-EC Series
| Product Data Sheet (PDF) | Data | Voltage | Motor |
|---|---|---|---|
| CE240/EM 10 | up to 810 m³/h | 230V | EC-Motor |
| CE470/EM 10 | up to 1493 m³/h | 230V | EC-Motor |
| CE5-670/EM 15 | up to 2299 m³/h | 230V | EC-Motor |
| CE670/EM 25 | up to 2067 m³/h | 230V | EC-Motor |
| CE690/EM 35 | up to 3153 m³/h | 230V | EC-Motor |
| CE6-770/EM 25 | up to 2730 m³/h | 230V | EC-Motor |
| CE6-770/DM 500 | up to 3200 m³/h | 400V | EC-Motor |
| CE790/DM 500 | up to 4404 m³/h | 400V | EC-Motor |
| CE790/EM 35 | up to 4380 m³/h | 230V | EC-Motor |
| CE890/EM 850 | up to 4849 m³/h | 230V | EC-Motor |
| CE890/DM 850 | up to 4849 m³/h | 400V | EC-Motor |
| CE890/DM 1 | up to 5825 m³/h | 400V | EC-Motor |
| CE9-090/DM 2 | up to 6723 m³/h | 400V | EC-Motor |
| CE990/DM 2 | up to 6982 m³/h | 400V | EC-Motor |
| CE9-090/DM 2.5 | up to 8443 m³/h | 400V | EC-Motor |
| Product Data Sheet (PDF) | Data | Voltage | Motor |
|---|---|---|---|
| CE240/E 1 | up to 754 m³/h | 230V | Standard |
| CE470/E 1 | up to 1162 m³/h | 230V | Standard |
| CE670/E 15 | up to 1893 m³/h | 230V | Standard |
| CE5-670/E 15 | up to 2070 m³/h | 230V | Standard |
| CE6-770/E 35 | up to 2588 m³/h | 230V | Standard |
| CE690/E 35 | up to 2682 m³/h | 230V | Standard |
| CE690/D 500 | up to 2828 m³/h | 230V | Standard |
| CE790/D 500 | up to 3382 m³/h | 230V | Standard |
| CE790/E 35 | up to 3250 m³/h | 230V | Standard |
| CE890/E 65 | up to 3573 m³/h | 230V | Standard |
| CE890/E 80 | up to 4388 m³/h | 230V | Standard |
| CE670/D 500 | up to 2273 m³/h | 400V | Standard |
| CE890/D 850 | up to 4480 m³/h | 400V | Standard |
| CE890/D 1 | up to 5025 m³/h | 400V | Standard |
| CE990/D 2 | up to 5921 m³/h | 400V | Standard |
| CE9-990/D 2 | up to 6386 m³/h | 400V | Standard |
| CE9-090/D 2.5 | up to 7800 m³/h | 400V | Standard |
Compact Fans with Single Inlet Fans – CER/CER-EC Series
With the CER/CER-EC series, Fischbach offers a wide range of compact fans / radial fans with single inlet and internal with Disc-Rotor Motor for assignment on several ventilation applications in field of AHU or machinery and plant engineering. Especially the double acoustic decoupling provides extremely quiet operation such as in the area of extraction systems at workstations.
Download Material
Product tables of the CER/CER-EC Series
| Product Data Sheet (PDF) | Data | Voltage | Motor |
|---|---|---|---|
| CER7-315/EM1 | 2100 m³/h | 230V | EC-Motor |
| CER8-355/EM15 | 3000 m³/h | 230V | EC-Motor |
| CER9-400/EM25 | 4050 m³/h | 230V | EC-Motor |
| CER0-450/EM35 | 5750 m³/h | 230V | EC-Motor |
| CER7-315 / E1 | 1500 m³/h | 230V | Standard |
| CER8-355 / E15 | 2340 m³/h | 230V | Standard |
| CER9-400 / E25 | 3270 m³/h | 230V | Standard |
| CER0-450 / E35 | 4550 m³/h | 230V | Standard |
Compact Fan CFE/CFE-EC Series with Inlet Fan Super Flat
Fischbach compact fans super flat line, with spiral casing and forward curved blades are always used when compact constructions are needed and a high efficiency is to be achieved. The installation is possible in any desired position due to integrated angular contact bearings. As with all our product lines, special voltages (foreign networks, shipbuilding) can also be easily provided.
Product tables of the CFE/CFE-EC Series
| Product Data Sheet (PDF) | Data | Voltage | Motor |
|---|---|---|---|
| CFE5-640/EM 15 | up to 1880 m³/h | 230V | EC-Motor |
| CFE740/EM 25 | up to 2164 m³/h | 230V | EC-Motor |
| CFE8-940/EM 850 | up to 3400 m³/h | 230V | EC-Motor |
| CFE7-840/DM 500 | up to 2990 m³/h | 400V | EC-Motor |
| CFE8-940/DM 850 | up to 3790 m³/h | 400V | EC-Motor |
| CFE930/DM 1 | up to 4220 m³/h | 400V | EC-Motor |
| CFE9-070/DM 2 | up to 6060 m³/h | 400V | EC-Motor |
| CFE9-070/DM 2.5 | up to 6190 m³/h | 400V | EC-Motor |
| Product Data Sheet (PDF) | Data | Voltage | Motor |
|---|---|---|---|
| CFE540/E 1 | up to 1114 m³/h | 230V | Standard |
| CFE640/E 15 | up to 1560 m³/h | 230V | Standard |
| CFE5-640/E 15 | up to 1497 m³/h | 230V | Standard |
| CFE6-740/E 25 | up to 2074 m³/h | 230V | Standard |
| CFE840/E 35 | up to 2621 m³/h | 230V | Standard |
| CFE7-840/E 35 | up to 2436 m³/h | 230V | Standard |
| CFE930/E 80 | up to 3470 m³/h | 230V | Standard |
| CFE8-940/E 65 | up to 2810 m³/h | 230V | Standard |
| CFE8-940/E 80 | up to 3200 m³/h | 230V | Standard |
| CFE840/D 500 | up to 2755 m³/h | 400V | Standard |
| CFE8-940/D 850 | up to 3308 m³/h | 400V | Standard |
| CFE930/D 1 | up to 3972 m³/h | 400V | Standard |
| CFE930/D 850 | up to 3923 m³/h | 400V | Standard |
| CFE9-070/D 2 | up to 5260 m³/h | 400V | Standard |
| CFE9-070/D 2.5 | up to 6145 m³/h | 400V | Standard |
CEK/CEK-EC Series with External Motor
Kitchen exhaust air fans in compact design from Fischbach with Disc-Rotor Motor / EC Disc-Rotor-Motor which is separated from the air flow and in compliance with the current VDI guidelines, are used when existing exhaust air systems must be replaced or optimized and when is comes down to minimum sound power levels (as e.g. extraction hoods in industrial kitchens). Easy to clean, cost-effective, quick assembly. The maximum air volume is 3.800m³/h (CEK Series) or 4000 m³/h (CEK-EC Series).
Motor casing – Aluminium
Forward bended impeller blades made of galvanized steel sheets. The internal fan assembly has been dynamic balanced according to ISO 1940 part 1 up to grade Q1. The maximum permissible air flow temperature is up to 80°C. The maximum permissible ambient temperature is up to 40°C.
The FISCHBACH disc rotor motor is protected against overheating by a thermal contact. Speed controllable by voltage or by frequency converter and also possible 2-steps with star/delta connection.
| Produkt Data Sheet (PDF) | Voltage | Motor |
|---|---|---|
| CEK570/E 25 | 230V | Standard |
| CEK790/D1 | 400V | Standard |
| CEK670/E 35 | 230V | Standard |
| CEK570/EM 25 | 230V | EC-Motor |
| CEK670/DM 500 | 400V | EC-Motor |
| CEK790/DM 1 | 400V | EC-Motor |

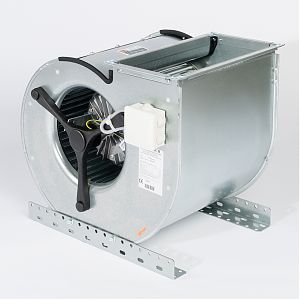

D/DS Series with double motor
Fischbach compact-fans with double motor are the perfect solutions in the field of ventilation implementation with high demanding flexibility. Scopes of application such as for ventilation and deaeration of underground parking garages, restaurants, bars and clubs as well as larger hotel and hall areas, can be covered with this product line with 230 volt motor. The motors can be controlled both parallel and separate.
Download Material
Connection Options
Diagram Overview
Dimensions D/DS with double motor
| Product | Voltage | Data Sheet (PDF) |
|---|---|---|
| DS7-870/2x E65 | 230V | Manual |
| DS8-970/2xE80 | 230V | Manual |
| DS8-970/2x D1 | 400V | Manual |
| DS9-000/2x D2.5 | 400V | Manual |
