Freewheeling Impeller

Freewheeling impeller for AHU with backward curved impellers made of aluminum and 100% adjustable Disc-Rotor-Motor/EC Disc-Rotor-Motor. The particular curvature provides a high power density and simultaneously low running noise. The impellers consist of riveted or welded aluminum wheels and have a flange for direct mounting. The FLRE/FLRE-EC, FMB/FMB-EC and FMBT Series have a mounting frame made of stable steel structure, with a fixed axle and rubber-metal connections (vibration) for smooth running. The housings consist of a robust frame design (aluminum) with 40mm cladding (insulation).

Engineering Properties of the Freewheeling Impeller

  • Max. Volume: 15,500 m³ / h
  • 4-pole, 230V / 400V / 50Hz / 60Hz
  • with Fischbach EC controller IP54 / IP21 inverter / IP66
  • Adjustable speed via interface via 0-10 Volt
  • Insulation class F (155 ° C) to VDE 0530th
  • Motor protection IP 65 (electrical part) according to DIN 40050 / CE mark.
  • ErP conformity
  • Aluminum impeller with backward curved blades, riveted or welded.
  • Aggregate fine balanced according to ISO 1940 Part 1 to grade Q. 1.
  • Mounted on flange.
  • The EC-disc armature motor is operating sensorless and comes with a thermal contact.
  • Maximum operating temperature: 70 ° C.

Freewheeling impeller FLR/FLR-EC Series

Fischbach Freewheeling Impeller FLR/FLR-EC Series

Fischbach Freewheeling Impeller FLR/FLR-EC Series Backview

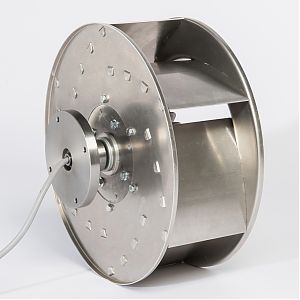

Fischbach Freewheeling Impeller FLR/FLR-EC Series Sideview

Download Material

Diagram Overview
Dimensions

Product Data Sheet (PDF)DataVoltageMotor
FLR355/E 15up to 3043 m³/h230VStandard
FLR400/E 25up to 4222 m³/h230VStandard
FLR450/E 35up to 6005 m³/h230VStandard
FLR500/E 65up to 7770 m³/h400VStandard
FLR560/D 1up to 11955 m³/h400VStandard
FLR630/D 2up to 15500 m³/h400VStandard
FLR355/EM 15up to 3280 m³/h230VEC-Motor
FLR400/EM 15up to 4760 m³/h230VEC-Motor
FLR450/DM 500up to 6650 m³/h400VEC-Motor
FLR500/DM 1up to 8700 m³/h400VEC-Motor
FLR560/DM 1up to 12117 m³/h400VEC-Motor
FLR630/DM 2up to 15425 m³/h400VEC-Motor

Freewheeling impeller FLRE/FLRE-EC Series

Fischbach Freewheeling impeller FLRE/FLRE-EC Series

Fischbach Freewheeling impeller FLRE/FLRE-EC Series Sideview

Fischbach Freewheeling impeller FLRE/FLRE-EC Series Backview

Product Data Sheet (PDF)DataVoltageMotor
FLRE355/E 15up to 3043 m³/h230VStandard
FLRE400/E 25up to 4222 m³/h230VStandard
FLRE450/E 35up to 6005 m³/h230VStandard
FLRE500/E 65up to 7770 m³/h230VStandard
FLRE560/D 1up to 11955 m³/h400VStandard
FLRE630/D 2up to 15500 m³/h400VStandard
FLRE355/EM15up to 3280 m³/h230VEC-Motor
FLRE400/EM 15up to 4760 m³/h230VEC-Motor
FLRE450/DM 500up to 6650 m³/h400VEC-Motor
FLRE500/DM 1up to 8700 m³/h400VEC-Motor
FLRE560/DM 1up to 12117 m³/h400VEC-Motor
FLRE630/DM 2up to 15425 m³/h400VEC-Motor

Freewheeling impeller – FMB/FMB-EC Series

Fischbach Freewheeling impeller FMB/FMB-EC Series

Fischbach Freewheeling impeller FMB/FMB-EC Series open

Fischbach Freewheeling impeller FMB/FMB-EC Series topview

  • FISCHBACH multi exhaust unit with freewheeling impeller
  • Casing steel-galvanized frame construction from robust Aluminium Profiles, with plastic corner pieces and removable casing panels with P.V.C. frame, in double skin construction 41 mm deep.
  • Insulation of mineral fibre, not flammable, with high thermal resistance and high acoustic insulation value.
  • Multi – Box made by robust frame design (aluminum) with 40mm cladding (insulation).
  • Motor protection IP 65 (electrical part) according to DIN 40050 / CE mark.
  • ErP conformity
  • Mounted on flange.
  • bearing maintenance-free
  • user defined mounting position
  • several discharge directions
  • multi-functional applicable

Download Material FMB

Diagram Overview
Dimensions

Download Material FMB-EC

Diagram Overview
Dimensions

Product Data Sheet (PDF)DataVoltageMotor
FMB1/1-355/E15up to 3043 m³/h230VStandard
FMB2/1-400/E25up to 4222 m³/h400VStandard
FMB2/2-450/D500up to 5410 m³/h400VStandard
FMB2/4-500/D1up to 7975 m³/h400VStandard
FMB3/1-560/D1up to 11955 m³/h400VStandard
FMB3/2-630/D2 up to 15500 m³/h400VStandard
FMB1/1-355/EM15up to 3280 m³/h230VEC-Motor
FMB2/1-400/EM15up to 4760 m³/h230VEC-Motor
FMB2/2-450/DM500up to 6650 m³/h400VEC-Motor
FMB2/4-500/DM1up to 8700 m³/h400VEC-Motor
FMB3/1-560/DM1up to 12117 m³/h400VEC-Motor
FMB3/2-630/DM2up to 15425 m³/h400VEC-Motor

FMBT Series

Fischbach Freewheeling Impeller FMBT

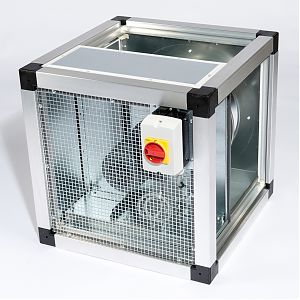

Fischbach Freewheeling Impeller FMBT Backview

Fischbach Freewheeling Impeller FMBT Frontview

For further information please look here.
