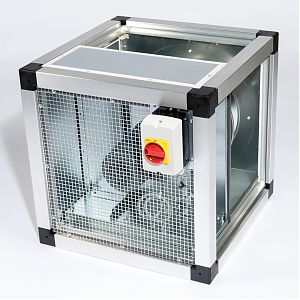

Kitchen Exhaust FMBT Series
Kitchen exhaust air units from Fischbach with with Disc-Rotor Motor / EC Disc-Rotor-Motor which is separated from the air flow and in compliance with the current VDI guidelines, are used when high volume flows and easy maintenance and cleaning are required. Due to the strong aluminum frame construction with 40mm insulation and the Fischbach with Disc-Rotor Motor / EC Disc-Rotor-Motor, high efficiency will be achieved in addition to a significant low sound level. Easy to clean, energy-efficient, quick assembly and simple maintenance.
max. air stream: 16.200m³/h

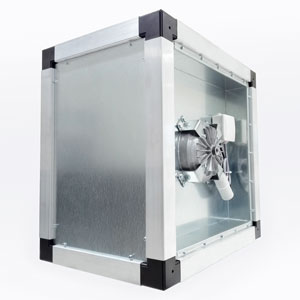

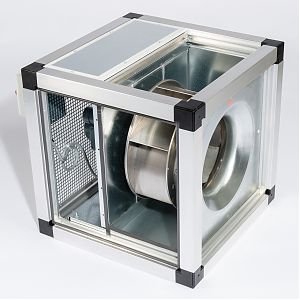

FISCHBACH-thermal exhaust unit with freewheeling impeller with backward curved blades and external IEC standard motor.
Casing steel-galvanized frame construction from robust Aluminium Profiles, with plastic corner pieces and removable casing panels with P.V.C. frame, in double skin construction 41 mm deep. Insulation of mineral fibre, not flammable, with high thermal resistance and high acoustic insulation value.
Supplementary products for series FMBT-EC:
Setpoint-Adjuster 0-10V Type: HF10 IP66 with toggle selector switch 0-I
Filter module with up to 3 pre-filter sections (on request)
Weather protection roof, transition pieces, damper, flexible connections
- discharge temperature up to 100°C
- protection type IP 54 / EC-Motor IP65
- single inlet, with external Motor / EC Disc-Rotor-Motor
- 4 poles, 230V/400V/50Hz/60Hz
- with Fischbach EC-Controller IP54 / Frequency Inverter IP66 (EC-Motor)
- adjustable by 0-10 Volts or controllable 0- 100% by voltage (standard motor)
- insulation class F (155°) according to VDE0530
- ErP conformity
- bearings maintenance-free
- user defined mounting position
- several discharge directions
- multi-functional applicable
| Product Data Sheet (PDF) | Motor | Voltage |
|---|---|---|
| FMBT560 D-K2 | Standard | 400V |
| FMBT630 D-K2 | Standard | 400V |
| FMBT-40/400/E35 | Standard | 230V |
| FMBT-40/450/E80 | Standard | 230V |
| FMBT-40/500/D1 | Standard | 400V |
| FMBT-EC40/355/EM25 | EC-Motor | 230V |
| FMBT-EC40/400/EM35 | EC-Motor | 230V |
| FMBT-EC40/450/DM850 | EC-Motor | 400V |
| FMBT-EC40/500/DM1 | EC-Motor | 400V |
| FMBT-EC40/500/EM850 | EC-Motor | 230V |
Kitchen Exhaust EASY Box Series
Download Material
Diagram overview
Diagram overview EC
Sound Data FMBT/FMBT-EC and FEB/FEB-EC
Dimensions
| Product Data Sheet (PDF) | Motor |
|---|---|
| FEB 355/E 25 | Standard |
| FEB 400/D 500 | Standard |
| FEB 400/E 35 | Standard |
| FEB 450/D 850 | Standard |
| FEB 450/E 80 | Standard |
| FEB 500/D 1 | Standard |
| FEB 560/D 2.5 | Standard |
| Product Data Sheet (PDF) | Motor |
|---|---|
| FEB 355/EM 25 | EC-Motor |
| FEB 400/DM 500 | EC-Motor |
| FEB 400/EM 35 | EC-Motor |
| FEB 450/DM 850 | EC-Motor |
| FEB 450/EM 850 | EC-Motor |
| FEB 500/DM 1 | EC-Motor |
| FEB 560/DM 2.5 | EC-Motor |
Kitchen exhaust CEK/CEK-EC
Kitchen exhaust – External Motor – CEK/CEK-EC. On request available in stainless steel or lacquered steel versions. For further information please have a look here.
